GES NXT-8
Model: AE1034XX-01

Download PDF

Request More Information

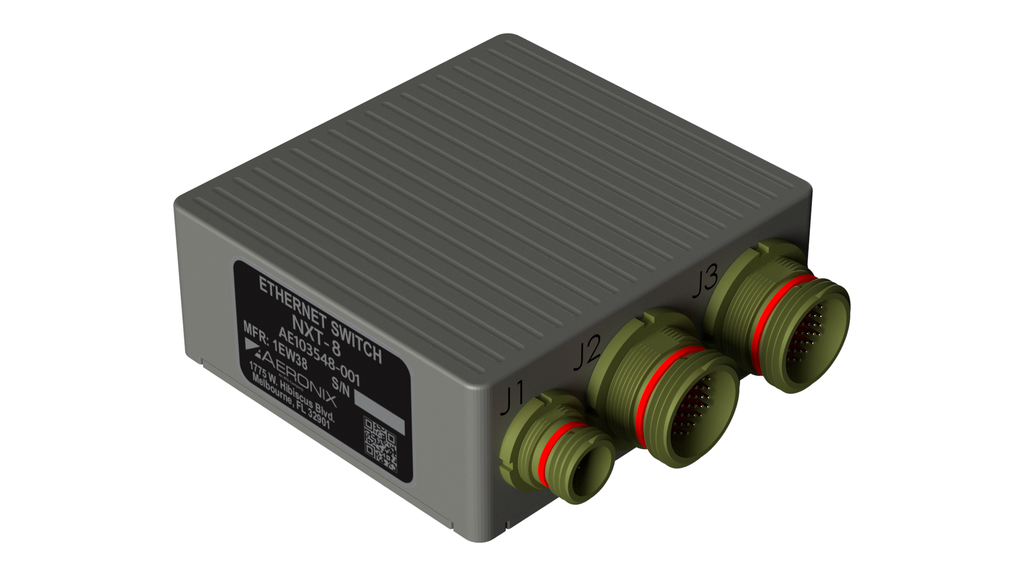

The Aeronix Gigabit Ethernet Switch (GES) NXT-8 is a MIL-Qualified 8-port Ethernet switch equipped with 8 x 10/100/1000 BASE-T copper ports. It is used in commercial, industrial, and military applications that require ultra-high data transfer rates in a self-contained ruggedized package. The rugged design requires no forced air or conductive cooling, operating in a broad range of harsh environments including uninhabited aircraft bays.

The NXT-8 is a fully managed Layer 2/3 router with the capability of customer specific configurations. The configurations are stored in non-volatile memory and loaded at startup to fulfill application specific requirements. All configurations are authenticated.

Enhanced Features

• Time-Sensitive Networking (Deterministic Ethernet)L
  • Low latency, Highest QoS, Assured bandwidth
  • GCIA 2.0 ready
• PTPv2 (IEEE-1588 and 802.1as)
  • Grandmaster (GM) capable via external GPS
  • Phase lock to GM in less than 20 secs
  • Jitter from GM less than 100 ns
• Secure Boot, Secure Update, Secure Config
  • HW ASIC-enforced using asymmetric ECDSA P384
  • Rescue via TOTP
• Enhanced Built-In Test (Startup, Periodic, Initiated)
  • Time-Domain Reflectometry cable test
  • MAC Bouncing (spoofing) detection
• Store and Forward (default), Cut-through
• Port and Flow Mirroring, Jumbo frames
• Monitoring alarms through SNMP or JSON-RPC
• Hardware & Software Zeroize
• Boot Time < 50s
• Tri-Color Power/status LED
