AB12R
Model: AE102135-001

Download PDF

Request More Information

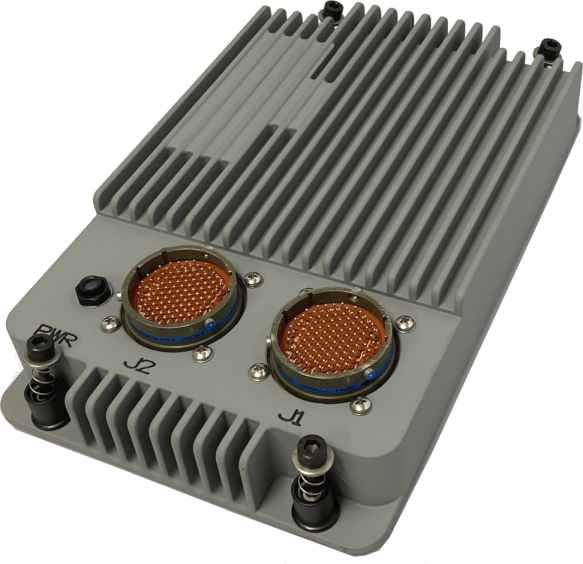

AB12R: Ruggedized 12-Port Gigabit Ethernet Router

The Aeronix Gigabit Ethernet Router (GER) AB12R provides twelve Tri-speed Ethernet ports for use in commercial, industrial, and military applications that require ultra-high data transfer rates in a self-contained ruggedized package. The rugged design requires no forced air or conductive cooling, allowing operation in a broad range of harsh environments including operation in uninhabited aircraft bays.

The AB12R design is based on the widely-fielded Aeronix GES Gen2 product with a more powerful processor and switch chip fabric necessary to support Layer 3 infrastructure and management, all with only a minimal impact on overall power consumption. Advanced Layer 3 functions like IPSEC, RIP and OSPF can be utilized to add security to packets, and dynamic routing for more efficient communication using least cost routes. Firewalls can be set up to block traffic of specific types on specific ports.

Each of the twelve IEEE 802.3ab ports can individually auto-detect data rates of 10, 100, or 1000 BASE-T, or can be managed externally. The PHY’s in the AB12R offer extensive built in test utilizing Time Domain Reflectometry to detect problems in the platform wiring during Startup BIT.

Key Features:

• Power Consumption <18 watts="" --18--="">
• IPv6 Routing
• RIP v1/v2/ng dynamic routing
• OSPF v2/v3 dynamic routing
• IPSEC - IPv4
• Network Address Translation - IPv4
• Intrusion Detection Prevention- IPv4
• Stateful Firewall - IPv4
• IGMP Snooping
• Link Aggregation
• Port States and BPDU handling for Spanning Tree Protocol
• Quality of Service (QOS) Diff Serv Traffic Capability - 802.1p
• Virtual LAN (VLAN) per IEEE 802.1Q
• Port Mirroring
• In Band Secure Shell (SSH), HTTPS GUI, SNMP V2/3 MIBs
• Serial port Command Line Interface
• 12 Tri-Speed 10/100/1000 ports
• Pin for Pin compatible with GEN2GES
• DO-160 EMI
• DO-160 Power
• Mil-Std-810 Environmental
• -40C to + 71C operating temperature
• altitude to 65,0000 feet
• weight <2.75 lbs="" li="">
• volume <58 cubic="" li="">
• Only 5.15” x 8.25” x 1.38”
